容器适配器是一个封装了序列容器的类模板,它在一般序列容器的基础上提供了一些不同的功能。之所以称作适配器类,是因为它可以通过适配容器现有的接口来提供不同的功能。

stack<T>容器适配器中的数据是以 LIFO 的方式组织的,这和自助餐馆中堆叠的盘子、箱子中的一堆书类似。图 1 展示了一个理论上的 stack 容器及其一些基本操作。只能访问 stack 顶部的元素;只有在移除 stack 顶部的元素后,才能访问下方的元素。

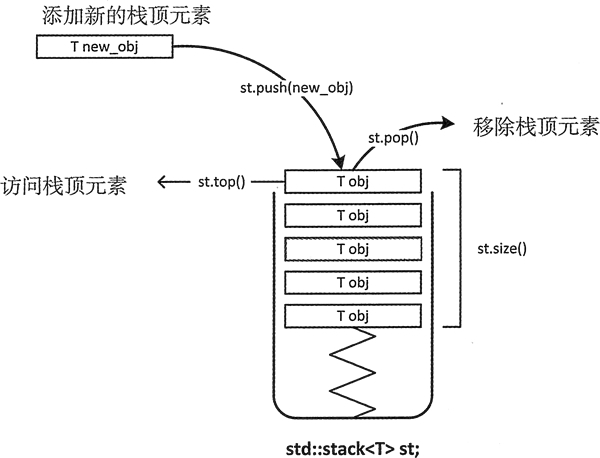

图 1 stack 容器的基本操作

stack 容器有广泛的应用。例如,编辑器中的 undo (撤销)机制就是用堆栈来记录连续的变化。撤销操作可以取消最后一个操作,这也是发生在堆栈顶部的操作。编译器使用堆栈来解析算术表达式,当然也可以用堆栈来记录 C++ 代码的函数调用。下面展示了如何定义一个用来存放字符串对象的 stack 容器:
std::stack<std::string> words;
stack 容器适配器的模板有两个参数。第一个参数是存储对象的类型,第二个参数是底层容器的类型。stack<T> 的底层容器默认是 deque<T> 容器,因此模板类型其实是 stack<typename T, typename Container=deque<T>>。通过指定第二个模板类型参数,可以使用任意类型的底层容器,只要它们支持 back()、push_back()、pop_back()、empty()、size() 这些操作。下面展示了如何定义一个使用 list<T> 的堆栈:
std::stack<std::string,std::list<std::string>> fruit;
创建堆栈时,不能在初始化列表中用对象来初始化,但是可以用另一个容器来初始化,只要堆栈的底层容器类型和这个容器的类型相同。例如:
std::list<double> values {1.414, 3.14159265, 2.71828};
std::stack<double,std::list<double>> my_stack (values);
第二条语句生成了一个包含 value 元素副本的 my_stack。这里不能在 stack 构造函数中使用初始化列表;必须使用圆括号。如果没有在第二个 stack 模板类型参数中将底层容器指定为 list,那么底层容器可能是 deque,这样就不能用 list 的内容来初始化 stack;只能接受 deque。

stack<T> 模板定义了拷贝构造函数,因而可以复制现有的 stack 容器:
std::stack<double,std::list<double>>copy_stack {my_stack}
copy_stack 是 my_stack 的副本。如你所见,在使用拷贝构造函数时,既可以用初始化列表,也可以用圆括号。

堆栈操作

和其他序列容器相比,stack 是一类存储机制简单、所提供操作较少的容器。下面是 stack 容器可以提供的一套完整操作:

stack<T> 模板也定义了复制和移动版的 operator=() 函数,因此可以将一个 stack 对象赋值给另一个 stack 对象。stack 对象有一整套比较运算符。比较运算通过字典的方式来比较底层容器中相应的元素。字典比较是一种用来对字典中的单词进行排序的方式。依次比较对应元素的值,直到遇到两个不相等的元素。第一个不匹配的元素会作为字典比较的结果。如果一个 stack 的元素比另一个 stack 的多,但是所匹配的元素都相等,那么元素多的那个 stack 容器大于元素少的 stack 容器。

我们可以用 stack 容器来实现一个简单的计算器程序。这个程序支持一些基本的加、 减、乘、除、幂操作。它们分别对应运算符 +、-、*、/、^。幂操作由定义在头文件 cmath 中的 pow() 函数提供。表达式以单行字符串的形式读入,可以包含空格。在解析字符串之前可以使用 remove() 算法来移除输入表达式中的空格,然后再执行这个表达式所包含的运算。下面我们会定义一个函数来获取运算符的优先级:
inline size_t precedence(const char op)
{
    if (op == '+' || op =='-')
        return 1;
    if (op == '*' || op == '/')
        return 2;
    if (op =='^')
        return 3;
    throw std:: runtime_error {string{"invalid operator: "} + op};
}
+ 和 - 的优先级最低,其次是 * 和 /,最后是 ^。运算符的优先级决定了它们在表达式中的执行顺序。如果参数是一个不支持的运算符,那么会拋出一个 runtime_error 异常对象。异常对象构造函数中的字符串参数,可以在 catch 代码块中通过调用对象的 what() 函数获得。

这个程序通过从左到右扫描的方式来分析输入表达式,并且会将运算符保存到 stack 容器 operators 中。操作数存放在 stack 容器 operands 中。所有的运算符都需要两个操作数,所以每执行一次运算,都需要获取一个 operators 栈顶的运算符,以及两个 operands 栈顶的操作数。运算由下面的函数执行:
double execute(std::stack<char>& ops, std::stack<double>& operands)
{
    double result {};
    double rhs {operands.top()};                            // Get rhs...
    operands.pop();                                         // ...and delete from stack
    double lhs {operands.top()};                            // Get lhs...
    operands.pop();                                         // ...and delete from stack

    switch (ops.top())                                      // Execute current op
    {
        case '+':
            result = lhs + rhs;
            break;
        case '-':
            result = lhs - rhs;
            break;
        case '*':
            result = lhs * rhs;
            break;
        case '/':
            result = lhs / rhs;
            break;
        case '^':
            result = std::pow(lhs, rhs);
            break;
        default:
            throw std::runtime_error {string{"invalid operator: "} + ops.top()};
    }
    ops.pop(); // Delete op just executed
    operands.push(result);
    return result;
}
函数的参数是两个 stack 容器的引用。可以用 operands 容器的 top() 函数获取操作数。 top() 函数只能得到栈顶元素;为了访问下一个元素,必须通过调用 pop() 来移除当前栈顶元素。

注意,栈中操作数的顺序是相反的,因此得到的第一个操作数是运算的右操作数。operators 容器顶部的元素用来在 switch 中选择运算。在它不匹配任何一个 case 分支时,会拋出一个异常来表明这个运算符是无效的。

下面是这个程序的完整代码:
// A simple calculator using stack containers
#include <cmath>                                          // For pow() function
#include <iostream>                                       // For standard streams
#include <stack>                                          // For stack<T> container
#include <algorithm>                                      // For remove()
#include <stdexcept>                                      // For runtime_error exception
#include <string>                                         // For string class
using std::string;

// Returns value for operator precedence
inline size_t precedence(const char op)
{
    if (op == '+' || op == '-')
        return 1;
    if (op == '*' || op == '/')
        return 2;
    if (op == '^')
        return 3;
    throw std::runtime_error {string {"invalid operator in precedence() function: "} + op};
}

// Execute an operation
double execute(std::stack<char>& ops, std::stack<double>& operands)
{
    double result {};
    double rhs {operands.top()};                            // Get rhs...
    operands.pop();                                         // ...and delete from stack
    double lhs {operands.top()};                            // Get lhs...
    operands.pop();                                         // ...and delete from stack

    switch (ops.top())                                      // Execute current op
    {
        case '+':
            result = lhs + rhs;
            break;
        case '-':
            result = lhs - rhs;
            break;
        case '*':
            result = lhs * rhs;
            break;
        case '/':
            result = lhs / rhs;
            break;
        case '^':
            result = std::pow(lhs, rhs);
            break;
        default:
            throw std::runtime_error {string{"invalid operator: "} + ops.top()};
    }
    ops.pop();                                              // Delete op just executed
    operands.push(result);
    return result;
}

int main()
{
    std::stack<double> operands;                            // Push-down stack of operands
    std::stack<char> operators;                             // Push-down stack of operators
    string exp;                                             // Expression to be evaluated
    std::cout << "An arithmetic expression can include the operators +, -, *, /, and ^ for exponentiation." << std::endl;
    try
    {
        while (true)
        {
            std::cout << "Enter an arithmetic expression and press Enter - enter an empty line to end:" << std::endl;
            std::getline(std::cin, exp, '\n');
            if (exp.empty()) break;

            // Remove spaces
            exp.erase(std::remove(std::begin(exp), std::end(exp), ' '), std::end(exp));

            size_t index {};                                    // Index to expression string

            // Every expression must start with a numerical operand
            operands.push(std::stod(exp, &index));              // Push the first (lhs) operand on the stack

            while (true)
            {
                operators.push(exp[index++]);                     // Push the operator on to the stack

                // Get rhs operand
                size_t i {};                                      // Index to substring
                operands.push(std::stod(exp.substr(index), &i));  // Push rhs operand
                index += i;                                       // Increment expression index

                if (index == exp.length())                        // If we are at end of exp...
                {
                    while (!operators.empty())                      // ...execute outstanding ops
                        execute(operators, operands);
                    break;
                }

                // If we reach here, there's another op...
                // If there's a previous op of equal or higher precedence execute it
                while (!operators.empty() && precedence(exp[index]) <= precedence(operators.top()))
                    execute(operators, operands);                   //  Execute previous op.
            }
            std::cout << "result = " << operands.top() << std::endl;
        }
    }
    catch (const std::exception& e)
    {
        std::cerr << e.what() << std::endl;
    }
    std::cout << "Calculator ending..." << std::endl;
}
while 循环包含在一个 try 代码块中,这样就可以捕获抛出的任何异常。在 catch 代码块中,调用异常对象的成员函数 what() 会将错误信息输出到标准错误流中。在一个死循环中执行输入操作,当输入一个空字符串时,循环结束。可以使用 remove() 算法消除非空字符串中的空格。remove() 不能移除元素,而只能通过移动元素的方式来覆盖要移除的元素。

为了移除 exp 字符串中剩下的多余元素,可以用两个迭代器作为参数调用 erase()。其中第一个迭代器由 remove() 返回,指向字符串的最后一个有效元素的后面位置。第二个迭代器是字符串原始状态的结束迭代器。这两个迭代器指定范围的元素会被删除。

每个浮点操作数的值都是用定义在头文件 string 中的 stod() 函数获取的。这会将第一个字符串参数中的字符序列转换为 double 值。函数会从第一个表示有效浮点数的字符串的第一个字符开始,获取最长字符序列。第二个参数是一个整型指针,保存的是字符串中非数字部分第一个字符的索引。string 头文件中定义了 stod() 函数,它可以返回一个 float 值。 Stod() 会返回一个 long double 值。

因为所有的运算符都需要两个操作数,所以有效的输入字符串格式总是为 operand op operand op operand,等等。序列的第一个和最后一个元素都是操作数,每对操作数之间有一个运算符。因为有效表达式总是以操作数开头,所以第一个操作数在分析表达式的嵌套循环之前被提取出来。在循环中,输入字符串的运算符会被压入 operators 栈。在确认没有到达字符串末尾后,再从 exp 提取第二个操作数。这时,stod() 的第一个参数是从 index 开始的 exp 字符串,它是被压入 operators 栈的运算符后的字符。非数字字符串的第一个索引保存在i中。因为 i 是相对于 index 的,所以我们会将 index 加上 i 的值,使它指向操作数后的一个运算符(如果是 exp 中的最后一个操作数,它会指向字符串末尾的下一个位置)。

当 index 的值超过 exp 的最后一个字符时,会执行 operators 容器中剩下的运算符。如果没有到达字符串末尾,operators 容器也不为空,我们会比较 operators 栈顶运算符和 exp 中下一个运算符的优先级。如果栈顶运算符的优先级高于下一个运算符,就先执行栈顶的运算符。否则,就不执行栈顶运算符,在下一次循环开始时,将下一个运算符压入 operators 栈。通过这种方式,就可以正确计算出带优先级的表达式的值。

下面是一些示例输出:

An arithmetic expression can include the operators +, -, *, /, and ^ for exponentiation.
Enter an arithmetic expression and press Enter - enter an empty line to end:
2^0.5
result = 1.41421
Enter an arithmetic expression and press Enter - enter an empty line to end:
2.5e2 + 1.5e1*4
result = 310
Enter an arithmetic expression and press Enter - enter an empty line to end:
3*4*5 + 4*5*6 + 5*6*7
result = 390
Enter an arithmetic expression and press Enter - enter an empty line to end:

Calculator ending...

程序输出表明计算器工作正常,也说明 stod() 函数可以将不同符号的字符串转换为数字。
