[导读] canvas简单画板，花了几个小时搞定的简单玩意，目前只是初步demo，有时间在完善一下...

canvas简单画板，花了几个小时搞定的简单玩意，目前只是初步demo，有时间在完善一下

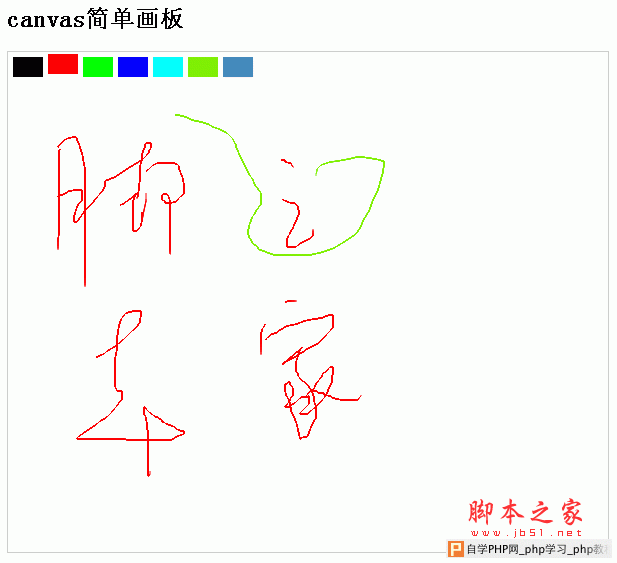

效果图：

注：下面的代码运行效果，请在支持html5浏览下执行，才能看到效果。

<!doctype html>
<html>
<head>
<title>canvas简单画板</title>
<style type="text/css">
#can{ width:600px; height:500px; border:1px solid #ccc; margin-top:0px; margin-left:20px;}
</style>
</head>
<body>
<h2 style="padding-left:20px">canvas简单画板</h2>
<canvas id="can" width="600" height="500"></canvas>
<script type="text/javascript">
function getBodyOffsetTop(el){
var top = 0;
do{
top = top + el.offsetTop;
}while(el = el.offsetParent);
return top;
}
function getBodyOffsetLeft(el){
var left = 0;
do{
left = left + el.offsetLeft;
}while(el = el.offsetParent);
return left;
}
function Drawing(canvas,options){
typeof canvas == 'string' && (canvas = document.getElementById(canvas));
if(!canvas || !canvas.getContext){
throw new Error(100,'do not support canvas!');
}
this.option = {
colors:['#000000','#ff0000','#00ff00','#0000ff','#00ffff','#7fef02','#4488bb']
};
this.setOption(options);
this.init(canvas);
}
Drawing.prototype = {
setOption:function(options){
typeof options == 'object' || (options = {});
for(var i in options){
switch(i){
case 'colors':
this.option[i] = options[i];
break;
}
}
},
init:function(canvas){
this.canvas = canvas;
this.context = canvas.getContext('2d');
this.context.lineWidth = 1;
this.context.lineJons = 'round';
this.context.lineCep = 'round';
this.isButtonDown = false;
this.historyStroker = [];
this.curStroker = {color:'#000000',path:[]};
this.lastX = 0;
this.lastY = 0;
this.curColor = '#000000';
this.toolbarspos ={};
this.bindEvent();
this.ResetDrawToolbar();
},
bindEvent:function(){
var self = this;
this.canvas.addEventListener('mousemove',function(event){
var x = event.pageX-getBodyOffsetLeft(this),
y = event.pageY-getBodyOffsetTop(this);
self.onMouseMove({x:x,y:y});
},false);
this.canvas.addEventListener('mousedown',function(event){
var x = event.pageX-getBodyOffsetLeft(this),
y = event.pageY-getBodyOffsetTop(this);
self.onMouseDown(event,{x:x,y:y});
},false);
this.canvas.addEventListener('mouseup',function(event){
var x = event.pageX-getBodyOffsetLeft(this),
y = event.pageY-getBodyOffsetTop(this);
self.onMouseUp(event,{x:x,y:y});
},false);
this.canvas.addEventListener('click',function(event){
var x = event.pageX-getBodyOffsetLeft(this),
y = event.pageY-getBodyOffsetTop(this);
self.onClick({x:x,y:y});
},false);
},
onMouseMove:function(pos){
if(this.isButtonDown){
var p = this.toolbarspos;
for(var i in p){
if(pos.x >= p[i].x
&& pos.x <= p[i].x+p[i].w
&& pos.y >= p[i].y
&& pos.y <= p[i].y+p[i].h){
return;
}
}
this.context.lineTo(pos.x,pos.y);
this.context.stroke();
this.lastX = pos.x;
this.lastY = pos.y;
this.curStroker.path.push(pos);
}
},
onMouseDown:function(event,pos){
if(event.button == 0){
var p = this.toolbarspos;
for(var i in p){
if(pos.x >= p[i].x
&& pos.x <= p[i].x+p[i].w
&& pos.y >= p[i].y
&& pos.y <= p[i].y+p[i].h){
return;
}
}
this.isButtonDown = true;
this.lastX = pos.x;
this.lastY = pos.y;
this.context.beginPath();
this.context.moveTo(this.lastX,this.lastY);
this.curStroker.color = this.curColor;
this.curStroker.path.push(pos);
}
},
onMouseUp:function(event,pos){
if(event.button == 0){
var p = this.toolbarspos;
for(var i in p){
if(pos.x >= p[i].x
&& pos.x <= p[i].x+p[i].w
&& pos.y >= p[i].y
&& pos.y <= p[i].y+p[i].h){
return;
}
}
this.isButtonDown = false;
this.historyStroker.push(this.curStroker);
this.curStroker = {color:this.curColor,path:[]};
}
},
ResetDrawAll:function(){
this.context.clearRect(0,0,500,500);
this.ResetDrawCentre();
this.ResetDrawToolbar();
},
ResetDrawCentre:function(){
var p = this.historyStroker,p2,
curColor = this.context.strokeStyle;
for(var i=0; i< p.length;i++){
this.context.strokeStyle = p[i].color;
this.context.beginPath();
for(var t=0; t<p[i].path.length;t++){
p2 = p[i].path[t];
if(t==0) this.context.moveTo(p2.x,p2.y);
this.context.lineTo(p2.x,p2.y);
this.context.stroke();
}
this.context.beginPath();
}
this.context.strokeStyle = curColor;
},
ResetDrawToolbar:function(){
var curcolor = this.context.fillStyle;
for(var i=0; i<this.option.colors.length;i++){
this.context.fillStyle = this.option.colors[i];
if(this.curColor == this.context.fillStyle){
this.context.fillRect(i*35+5,2,30,20);
this.toolbarspos[i] ={x:i*35+5,y:2,w:30,h:20};
}else{
this.context.fillRect(i*35+5,5,30,20);
this.toolbarspos[i] = {x:i*35+5,y:5,w:30,h:20};
}
this.context.stroke();
}
this.context.fillStyle = curcolor;
},
onClick:function(pos){
var p = this.toolbarspos;
for(var i in p){
if(pos.x >= p[i].x
&& pos.x <= p[i].x+p[i].w
&& pos.y >= p[i].y
&& pos.y <= p[i].y+p[i].h){
this.curColor = this.option.colors[i];
this.context.strokeStyle = this.curColor;
this.ResetDrawAll();
}
}
}
};
new Drawing('can');
</script></body>
</html>

提示：您可以先修改部分代码再运行
