Master-MasterMySQL复制安装配置试验 - mysql数据库栏目

来源:自学PHP网    时间:2015-04-16 10:51 作者: 阅读:

[导读] 一、 架构二、 安装Mysql server下面以在DB1(192 168 0 10)的配置为例,DB2的配置基本一样,只要修改my cnf中的server_id =21 安装mysql-server db1 apt-get insta...

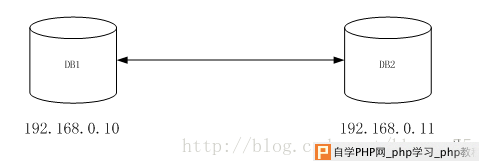

一、 架构

\



二、 安装Mysql server

下面以在DB1(192.168.0.10)的配置为例,DB2的配置基本一样,只要修改my.cnf中的server_id =2

1. 安装mysql-server

db1# apt-get install mysql-server

注:

? 如果安装有问题,执行apt-getupdate更新源后再重试

? 安装过程中需要输入root密码,设置后记住(123456)

2. 验证数据库安装

db1# mysql -p

Enter password:

Welcome to the MySQL monitor. Commands end with ; or \g.

Your MySQL connection id is 42

Server version: 5.5.38-0ubuntu0.12.04.1 (Ubuntu)



Copyright (c) 2000, 2014, Oracle and/or its affiliates. All rights reserved.



Oracle is a registered trademark of Oracle Corporation and/or its

affiliates. Other names may be trademarks of their respective

owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

(db1)mysql> show databases;

+--------------------+

| Database |

+--------------------+

| information_schema |

| mysql |

| performance_schema |

+--------------------+

3 rows in set (0.00 sec)

(db1)mysql>

3. 创建测试数据库

CREATE DATABASE /*!32312 IF NOT EXISTS*/`test` /*!40100 DEFAULT CHARACTER SET latin1 */;

USE `test`;

/*Table structure for table `user` */

DROP TABLE IF EXISTS `user`;

CREATE TABLE `user` (

`name` varchar(16) DEFAULT NULL,

`age` int(11) DEFAULT NULL

) ENGINE=InnoDB DEFAULT CHARSET=utf8;

此步骤略

4. my.cnf配置修改

以下红色部分为修改的配置

The MySQL database server configuration file.

#

# You can copy this to one of:

# - "/etc/mysql/my.cnf" to set global options,

# - "~/.my.cnf" to set user-specific options.

#

# One can use all long options that the program supports.

# Run program with --help to get a list of available options and with

# --print-defaults to see which it would actually understand and use.

#

# For explanations see

# http://dev.mysql.com/doc/mysql/en/server-system-variables.html



# This will be passed to all mysql clients

# It has been reported that passwords should be enclosed with ticks/quotes

# escpecially if they contain "#" chars...

# Remember to edit /etc/mysql/debian.cnf when changing the socket location.

[client]

port = 3306

socket = /var/run/mysqld/mysqld.sock

# Here is entries for some specific programs

# The following values assume you have at least 32M ram

# This was formally known as [safe_mysqld]. Both versions are currently parsed.

[mysqld_safe]

socket = /var/run/mysqld/mysqld.sock

nice = 0

[mysqld]

#

# * Basic Settings

#

user = mysql

pid-file = /var/run/mysqld/mysqld.pid

socket = /var/run/mysqld/mysqld.sock

port = 3306

basedir = /usr

datadir = /var/lib/mysql

tmpdir = /tmp

lc-messages-dir = /usr/share/mysql

skip-external-locking

#

# Instead of skip-networking the default is now to listen only on

# localhost which is more compatible and is not less secure.

#bind-address = 127.0.0.1

bind-address =0.0.0.0

#

# * Fine Tuning

#

key_buffer = 16M

max_allowed_packet = 16M

thread_stack = 192K

thread_cache_size = 8

# This replaces the startup script and checks MyISAM tables if needed

# the first time they are touched

myisam-recover = BACKUP

#max_connections = 100

#table_cache = 64

#thread_concurrency = 10

#

# * Query Cache Configuration

#

query_cache_limit = 1M

query_cache_size = 16M

#

# * Logging and Replication

#

# Both location gets rotated by the cronjob.

# Be aware that this log type is a performance killer.

# As of 5.1 you can enable the log at runtime!

#general_log_file = /var/log/mysql/mysql.log

#general_log = 1

#

# Error log - should be very few entries.

#

log_error = /var/log/mysql/error.log

#

# Here you can see queries with especially long duration

#log_slow_queries = /var/log/mysql/mysql-slow.log

#long_query_time = 2

#log-queries-not-using-indexes

#

# The following can be used as easy to replay backup logs or for replication.

# note: if you are setting up a replication slave, see README.Debian about

# other settings you may need to change.

#server-id = 1

#log_bin = /var/log/mysql/mysql-bin.log

expire_logs_days = 10

max_binlog_size = 100M

#binlog_do_db = include_database_name

#binlog_ignore_db = include_database_name

#

# * InnoDB

#

# InnoDB is enabled by default with a 10MB datafile in /var/lib/mysql/.

# Read the manual for more InnoDB related options. There are many!

#

# * Security Features

#

# Read the manual, too, if you want chroot!

# chroot = /var/lib/mysql/

#

# For generating SSL certificates I recommend the OpenSSL GUI "tinyca".

#

# ssl-ca=/etc/mysql/cacert.pem

# ssl-cert=/etc/mysql/server-cert.pem

# ssl-key=/etc/mysql/server-key.pem

server_id = 1

log_bin = /var/log/mysql/mysql-bin.log

log_bin_index = /var/log/mysql/mysql-bin.log.index

relay_log = /var/log/mysql/mysql-relay-bin

relay_log_index = /var/log/mysql/mysql-relay-bin.index

expire_logs_days = 10

max_binlog_size = 100M

log_slave_updates = 1

auto_increment_increment = 2

auto_increment_offset = 1

[mysqldump]

quick

quote-names

max_allowed_packet = 16M

[mysql]

#no-auto-rehash # faster start of mysql but no tab completition

[isamchk]

key_buffer = 16M

#

# * IMPORTANT: Additional settings that can override those from this file!

# The files must end with '.cnf', otherwise they'll be ignored.

#

!includedir /etc/mysql/conf.d/

5. 创建三种角色的用户

表格 1

角色

功能

权限

monitor user

MMM(Multi-Master replication manager of MYSQL)监控各主控的健康状况

REPLICATION CLIENT

agent user

MMM代理用来设置只读属性,复制主控等

SUPER, REPLICATION CLIENT, PROCESS

replicate user

用来复制

REPLICATION SLAVE

表格 2

(db1)mysql> GRANT REPLICATION CLIENT ON *.* TO 'mmm_monitor'@'115.29.198.150' IDENTIFIED BY '123456';

Query OK, 0 rows affected (0.00 sec)



(db1)mysql> GRANT SUPER, REPLICATION CLIENT, PROCESS ON *.* TO 'mmm_agent'@'42.96.%.%' IDENTIFIED BY '123456';

Query OK, 0 rows affected (0.00 sec)



(db1)mysql> GRANT REPLICATION SLAVE ON *.* TO 'replication'@'42.96.%.%' IDENTIFIED BY '123456';

Query OK, 0 rows affected (0.00 sec)

三、 同步DB1和DB2数据库

首先假设DB1包含正确的数据(即使是空数据库),进行DB1和DB2直接的数据同步。

1. 以下在DB1所在服务器上执行数据导出

(db1)mysql> FLUSH TABLES WITH READ LOCK;

(db1)mysql> SHOW MASTER STATUS;

+------------------+----------+--------------+------------------+

| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |

+------------------+----------+--------------+------------------+

| mysql-bin.000002 | 616 | | |

+------------------+----------+--------------+------------------+

1 row in set (0.00 sec)

(db1)mysql>

2. 另开一个命令窗口导出数据

(db1)# mysqldump -u root -p --all-databases > /tmp/database-backup.sql

3. 解锁第一个窗口

(db1)mysql> UNLOCK TABLES;

Query OK, 0 rows affected (0.00 sec)



(db1)mysql>

4. 将DB1导出的数据导入DB2

1) 拷贝到DB2

(db1)# scp database-backup.sql root@192.168.0.11:/tmp/

The authenticity of host '192.168.0.11 (192.168.0.11)' can't be established.

ECDSA key fingerprint is 55:84:03:9e:d9:74:cc:cd:03:59:23:3f:df:d9:77:a5.

Are you sure you want to continue connecting (yes/no)? yes

Warning: Permanently added '192.168.0.11' (ECDSA) to the list of known hosts.

root@192.168.0.11's password:

database-backup.sql 100% 528KB 527.9KB/s 00:00

(db1):/tmp#

2) 导入DB2

(db2)# mysql -u root -p < /tmp/database-backup.sql

Enter password:

(db2)#

3) 应用权限

(db2)mysql> FLUSH PRIVILEGES;

Query OK, 0 rows affected (0.00 sec)

4) 拷贝debian.cnf

将/etc/mysql/debian.cnf 从 DB1拷贝到DB2, 这个文件是用来启动和关闭mysql用的。

(db1)# scp debian.cnf root@192.168.0.11:/tmp/

在DB2上备份原来的debian.cnf,然后使用从DB1拷贝过来的debian.cnf

(db2)# mv /etc/mysql/debian.cnf /etc/mysql/debian.cnf.orign

(db2)# cp -f debian.cnf /etc/mysql/debian.cnf

上述步骤完成后准备工作都做好了,可以开始配置复制。

四、 复制配置

1. 在DB2上执行:

(db2)mysql> CHANGE MASTER TO master_host='192.168.0.10', master_port=3306, master_user='replication', master_password='123456', master_log_file='mysql-bin.000002', master_log_pos=616;

Query OK, 0 rows affected (0.04 sec)

注:master_log_file='mysql-bin.000002', master_log_pos=616 信息来自于在DB1上执行

mysql> show master status;

2. 在DB2上启动SLAVE

(db2)mysql> START SLAVE;

Query OK, 0 rows affected (0.00 sec)

3. DB2上检查复制进程

(db2)mysql> SHOW SLAVE STATUS\G

*************************** 1. row ***************************

Slave_IO_State: Waiting for master to send event

Master_Host: 192.168.0.10

Master_User: replication

Master_Port: 3306

Connect_Retry: 60

Master_Log_File: mysql-bin.000002

Read_Master_Log_Pos: 616

Relay_Log_File: mysql-relay-bin.000002

Relay_Log_Pos: 253

Relay_Master_Log_File: mysql-bin.000002

Slave_IO_Running: Yes

Slave_SQL_Running: Yes

Replicate_Do_DB:

Replicate_Ignore_DB:

Replicate_Do_Table:

Replicate_Ignore_Table:

Replicate_Wild_Do_Table:

Replicate_Wild_Ignore_Table:

Last_Errno: 0

Last_Error:

Skip_Counter: 0

Exec_Master_Log_Pos: 616

Relay_Log_Space: 409

Until_Condition: None

Until_Log_File:

Until_Log_Pos: 0

Master_SSL_Allowed: No

Master_SSL_CA_File:

Master_SSL_CA_Path:

Master_SSL_Cert:

Master_SSL_Cipher:

Master_SSL_Key:

Seconds_Behind_Master: 0

Master_SSL_Verify_Server_Cert: No

Last_IO_Errno: 0

Last_IO_Error:

Last_SQL_Errno: 0

Last_SQL_Error:

Replicate_Ignore_Server_Ids:

Master_Server_Id: 1

1 row in set (0.00 sec)

4. 配置从DB2复制到DB1

1) DB2状态

(db2)mysql> SHOW MASTER STATUS;

+------------------+----------+--------------+------------------+

| File | Position | Binlog_Do_DB | Binlog_Ignore_DB |

+------------------+----------+--------------+------------------+

| mysql-bin.000002 | 107 | | |

+------------------+----------+--------------+------------------+

1 row in set (0.01 sec)

mysql>

2) DB1复制的配置、启动和检查

(db1)mysql> CHANGE MASTER TO master_host = '192.168.0.11', master_port=3306, master_user='replication',

-> master_password='123456', master_log_file='mysql-bin.000002', master_log_pos=107;

Query OK, 0 rows affected (0.05 sec)



mysql> START SLAVE;

Query OK, 0 rows affected (0.00 sec)



mysql> SHOW SLAVE STATUS\G

*************************** 1. row ***************************

Slave_IO_State: Waiting for master to send event

Master_Host: 192.168.0.11

Master_User: replication

Master_Port: 3306

Connect_Retry: 60

Master_Log_File: mysql-bin.000002

Read_Master_Log_Pos: 107

Relay_Log_File: mysql-relay-bin.000002

Relay_Log_Pos: 253

Relay_Master_Log_File: mysql-bin.000002

Slave_IO_Running: Yes

Slave_SQL_Running: Yes

Replicate_Do_DB:

Replicate_Ignore_DB:

Replicate_Do_Table:

Replicate_Ignore_Table:

Replicate_Wild_Do_Table:

Replicate_Wild_Ignore_Table:

Last_Errno: 0

Last_Error:

Skip_Counter: 0

Exec_Master_Log_Pos: 107

Relay_Log_Space: 409

Until_Condition: None

Until_Log_File:

Until_Log_Pos: 0

Master_SSL_Allowed: No

Master_SSL_CA_File:

Master_SSL_CA_Path:

Master_SSL_Cert:

Master_SSL_Cipher:

Master_SSL_Key:

Seconds_Behind_Master: 0

Master_SSL_Verify_Server_Cert: No

Last_IO_Errno: 0

Last_IO_Error:

Last_SQL_Errno: 0

Last_SQL_Error:

Replicate_Ignore_Server_Ids:

Master_Server_Id: 2

1 row in set (0.00 sec)



mysql>

上述步骤完成MASTER-MASTER的复制配置,下面进行测试。

五、 复制验证

1. 在DB1上插入一条数据

(db1)mysql> select * from user;

Empty set (0.00 sec)

(db1)mysql> insert into user(name,age) values('user1',20);

Query OK, 1 row affected (0.03 sec)

(db1)mysql>

2. 在DB2上检查

(db2)mysql> select * from user;

Empty set (0.00 sec)

(db2)mysql> select * from user;

+-------+------+

| name | age |

+-------+------+

| user1 | 20 |

+-------+------+

1 row in set (0.00 sec)

(db2)mysql>

表面在DB1插入的(user1,20)这条记录已经被复制到DB2中。

3. 在DB2上插入一条数据

(db2)mysql> insert into user(name,age) values('user2',30);

Query OK, 1 row affected (0.02 sec

4. 在DB1上进行检查

(db1)mysql> select * from user;

+-------+------+

| name | age |

+-------+------+

| user1 | 20 |

| user2 | 30 |

+-------+------+

2 rows in set (0.00 sec)

表面在DB2插入的(user2,30)这条记录已经被复制到DB1中。

上述测试表面,DB1<----->DB2的MM配置完全成功。
