MySQL AB复制

关于MySQL AB复制
本文讲解如何快速打包和安装MySQL, MySQL AB复制,MySQL AB双向复制,MySQL多级主从复制,解决AB双向复制主键冲突。

首先我们先介绍什么是MySQL AB复制。

AB复制又称主从复制,实现的是数据同步。如果要做MySQL AB复制,数据库版本尽量保持一致。如果版本不一致,从服务器版本高于主服务器,但是版本不一致不能做双向复制。MySQL AB复制有什么好处呢?有两点,第一是解决宕机带来的数据不一致,因为MySQL AB复制可以实时备份数据;第二点是减轻数据库服务器压力,这点很容易想到,多台服务器的性能一般比单台要好。但是MySQL AB复制不适用于大数据量,如果是大数据环境,推荐使用集群。

然后我们来看看MySQL复制的 3 个主要步骤:
1)主服务器把数据更改记录到二进制日志中,这个操作叫做二进制日志事件;
2)从服务器把主服务器的二进制日志事件拷贝到自己的中继日志(relay log)中;
3)从服务器执行中继日志中的事件,把更改应用到自己的数据上。

快速打包和安装MySQL
在正式介绍MySQL AB复制之前,介绍怎样打包MySQL和快速安装MySQL。

第一步,制作文件
[root@serv08 ~]# find /usr/local/mysql/ /etc/my.cnf /etc/init.d/mysqld > mysql
第二步,打包
[root@serv08 ~]# tar -cPvzf mysql-5.5.29-linux2.6-x86_64.tar.gz -T mysql
[root@serv08 ~]# ll -h
total 202M
-rw-r--r--. 1 root root 411K Oct  5 19:19 mysql
-rw-r--r--. 1 root root 202M Oct  5 19:21 mysql-5.5.29-linux2.6-x86_64.tar.gz
第三步,拷贝文件到实体机
[root@serv08 mysql]# scp mysql-5.5.29-linux2.6-x86_64.tar.gz 192.168.1.1:/home/Wentasy/software/
第四步,拷贝文件到serv01
[root@serv01 ~]# yum install /usr/bin/scp -y[root@larrywen 1005]# scp /home/Wentasy/software/mysql-5.5.29-linux2.6-x86_64.tar.gz 192.168.1.11:/opt
root@192.168.1.11's password:
mysql-5.5.29-linux2.6-x86_64.tar.gz  100%  201MB  33.5MB/s  00:06
第五步,解压
[root@serv01 opt]# tar -xPvf mysql-5.5.29-linux2.6-x86_64.tar.gz
第六步,创建组和用户,注意编号和安装好数据库的机器上的用户一致
[root@serv01 opt]# groupadd -g 500 mysql
[root@serv01 opt]# useradd -u 500 -g 500 -r -M -s /sbin/nologin mysql
[root@serv01 opt]# id mysql
uid=500(mysql) gid=500(mysql) groups=500(mysql)
第七步,改变MySQL安装目录的拥有者和所属组
[root@serv01 opt]# chown mysql.mysql /usr/local/mysql/ -R
第八步,启动MySQL,做测试
[root@serv01 opt]# /etc/init.d/mysqld start
Starting MySQL.. SUCCESS!
[root@serv01 opt]# mysql
-bash: mysql: command not found
[root@serv01 opt]# vim ~/.bash_profile
[root@serv01 opt]# . !$
. ~/.bash_profile
[root@serv01 opt]# mysql
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.5.29-log Source distributionCopyright (c) 2000, 2012, Oracle and/or its affiliates. All rights reserved.Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.mysql>
 MySQL AB单向复制
好了,相信读者已经学会怎样打包MySQL和快速安装MySQL,接下来正式进入主题,我们先来看看一主多从架构的拓扑图:

图一 一主多从架构
该图展示了一个 master 复制多个 slave 的架构,多个 slave 和单个 slave 的实施并没有实质性的区别,在 master 端并不在乎有多少个 slave 连接自己,只要有 slave 的 IO 线程通过了连接认证,向他请求指定位置之后的 binary log 信息,他就会按照该 IO 线程的要球,读取自己的binary log 信息,返回给 slave的 IO 线程。

既然对拓扑图和原理有所了解,我们做一个实验,介绍如何使用MySQL AB复制:

实验环境介绍

主机   IP地址   主机名   备注
serv01:  192.168.1.11  serv01.host.com  master
serv08:  192.168.1.18  serv08.host.com  slave01
操作系统版本:rhel server 6.1
所需要的软件包:mysql-5.5.29-linux2.6-x86_64.tar.gz

第一步,主服务器创建用户并清空日志
mysql> show privileges;
mysql> grant replication client, replication slave on *.* to 'larry'@'192.168.1.%' identified by 'larry';
Query OK, 0 rows affected (0.00 sec)mysql> show binary logs;
+------------------+-----------+
| Log_name  | File_size |
+------------------+-----------+
| mysql-bin.000001 |  27320 |
| mysql-bin.000002 |  1035309 |
| mysql-bin.000003 |  126 |
| mysql-bin.000004 |  279 |
+------------------+-----------+
4 rows in set (0.00 sec)mysql> show databases;
+--------------------+
| Database  |
+--------------------+
| information_schema |
| mysql  |
| performance_schema |
| test  |
+--------------------+
4 rows in set (0.01 sec)mysql> reset master;
Query OK, 0 rows affected (0.02 sec)mysql> show binary logs;
+------------------+-----------+
| Log_name  | File_size |
+------------------+-----------+
| mysql-bin.000001 |  107 |
+------------------+-----------+
1 row in set (0.00 sec)
第二步,修改从服务器的server-id
[root@serv08 ~]# cat /etc/my.cnf | grep server-id
server-id = 1
#server-id  = 2
[root@serv08 ~]# vim /etc/my.cnf
[root@serv08 ~]# cat /etc/my.cnf | grep server-id
server-id = 2
#server-id  = 2
[root@serv08 ~]# /etc/init.d/mysqld restart
Shutting down MySQL... SUCCESS!
Starting MySQL.. SUCCESS! #可以查看从服务器中的数据文件
[root@serv08 ~]# cd /usr/local/mysql/data/
[root@serv08 data]# ll
total 29752
-rw-rw----. 1 mysql mysql 18874368 Oct  5 19:45 ibdata1
-rw-rw----. 1 mysql mysql  5242880 Oct  5 19:45 ib_logfile0
-rw-rw----. 1 mysql mysql  5242880 Oct  5 18:16 ib_logfile1
drwxr-xr-x. 2 mysql mysql  4096 Oct  5 18:15 mysql
-rw-rw----. 1 mysql mysql  27320 Oct  5 18:15 mysql-bin.000001
-rw-rw----. 1 mysql mysql  1035309 Oct  5 18:15 mysql-bin.000002
-rw-rw----. 1 mysql mysql  126 Oct  5 18:16 mysql-bin.000003
-rw-rw----. 1 mysql mysql  126 Oct  5 19:45 mysql-bin.000004
-rw-rw----. 1 mysql mysql  107 Oct  5 19:45 mysql-bin.000005
-rw-rw----. 1 mysql mysql  95 Oct  5 19:45 mysql-bin.index
drwx------. 2 mysql mysql  4096 Oct  5 18:15 performance_schema
-rw-r-----. 1 mysql root  4775 Oct  5 19:45 serv08.host.com.err
-rw-rw----. 1 mysql mysql  5 Oct  5 19:45 serv08.host.com.pid
drwxr-xr-x. 2 mysql mysql  4096 Oct  5 18:12 test
第三步,从服务器清空日志
mysql> show binary logs;
ERROR 2006 (HY000): MySQL server has gone away
No connection. Trying to reconnect...
Connection id:  1
Current database: *** NONE ***+------------------+-----------+
| Log_name  | File_size |
+------------------+-----------+
| mysql-bin.000001 |  27320 |
| mysql-bin.000002 |  1035309 |
| mysql-bin.000003 |  126 |
| mysql-bin.000004 |  126 |
| mysql-bin.000005 |  107 |
+------------------+-----------+
5 rows in set (0.00 sec)mysql> reset master;
Query OK, 0 rows affected (0.02 sec)mysql> show binary logs;
+------------------+-----------+
| Log_name  | File_size |
+------------------+-----------+
| mysql-bin.000001 |  107 |
+------------------+-----------+
1 row in set (0.00 sec)mysql> show slave status;
Empty set (0.00 sec)
第四步,从服务器通过change master to命令修改设置
mysql> change master to
  -> master_host='192.168.1.11',
  -> master_user='larry',
  -> master_password='larry',
  -> master_port=3306,
  -> master_log_file='mysql-bin.000001',
  -> master_log_pos=107;
Query OK, 0 rows affected (0.01 sec)
第五步,开启slave。
mysql> show slave status \G;
*************************** 1. row ***************************
  Slave_IO_State:
  Master_Host: 192.168.1.11
  Master_User: larry
  Master_Port: 3306
  Connect_Retry: 60
  Master_Log_File: mysql-bin.000001
  Read_Master_Log_Pos: 107
  Relay_Log_File: serv08-relay-bin.000001
  Relay_Log_Pos: 4
  Relay_Master_Log_File: mysql-bin.000001
  Slave_IO_Running: No
  Slave_SQL_Running: No
  Replicate_Do_DB:
  Replicate_Ignore_DB:
  Replicate_Do_Table:
  Replicate_Ignore_Table:
  Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
  Last_Errno: 0
  Last_Error:
  Skip_Counter: 0
  Exec_Master_Log_Pos: 107
  Relay_Log_Space: 107
  Until_Condition: None
  Until_Log_File:
  Until_Log_Pos: 0
  Master_SSL_Allowed: No
  Master_SSL_CA_File:
  Master_SSL_CA_Path:
  Master_SSL_Cert:
  Master_SSL_Cipher:
  Master_SSL_Key:
  Seconds_Behind_Master: NULL
Master_SSL_Verify_Server_Cert: No
  Last_IO_Errno: 0
  Last_IO_Error:
  Last_SQL_Errno: 0
  Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
  Master_Server_Id: 0
1 row in set (0.00 sec)ERROR:
No query specifiedmysql> start slave;
Query OK, 0 rows affected (0.01 sec)
第六步,从服务器查看是否和主服务器通信成功。如果出现 Slave_IO_Running和Slave_SQL_Running都是yes,则证明配置成功
mysql> show slave status \G;
*************************** 1. row ***************************
  Slave_IO_State: Waiting for master to send event
  Master_Host: 192.168.1.11
  Master_User: larry
  Master_Port: 3306
  Connect_Retry: 60
  Master_Log_File: mysql-bin.000001
  Read_Master_Log_Pos: 107
  Relay_Log_File: serv08-relay-bin.000002
  Relay_Log_Pos: 253
  Relay_Master_Log_File: mysql-bin.000001
  Slave_IO_Running: Yes
  Slave_SQL_Running: Yes
  Replicate_Do_DB:
  Replicate_Ignore_DB:
  Replicate_Do_Table:
  Replicate_Ignore_Table:
  Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
  Last_Errno: 0
  Last_Error:
  Skip_Counter: 0
  Exec_Master_Log_Pos: 107
  Relay_Log_Space: 410
  Until_Condition: None
  Until_Log_File:
  Until_Log_Pos: 0
  Master_SSL_Allowed: No
  Master_SSL_CA_File:
  Master_SSL_CA_Path:
  Master_SSL_Cert:
  Master_SSL_Cipher:
  Master_SSL_Key:
  Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
  Last_IO_Errno: 0
  Last_IO_Error:
  Last_SQL_Errno: 0
  Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
  Master_Server_Id: 1
1 row in set (0.00 sec)ERROR:
No query specified
第七步,从服务器查看数据文件的更改
[root@serv08 data]# ll
total 28724
-rw-rw----. 1 mysql mysql 18874368 Oct  5 19:45 ibdata1
-rw-rw----. 1 mysql mysql  5242880 Oct  5 19:45 ib_logfile0
-rw-rw----. 1 mysql mysql  5242880 Oct  5 18:16 ib_logfile1
-rw-rw----. 1 mysql mysql  78 Oct  5 19:49 master.info
drwxr-xr-x. 2 mysql mysql  4096 Oct  5 18:15 mysql
-rw-rw----. 1 mysql mysql  107 Oct  5 19:45 mysql-bin.000001
-rw-rw----. 1 mysql mysql  19 Oct  5 19:45 mysql-bin.index
drwx------. 2 mysql mysql  4096 Oct  5 18:15 performance_schema
-rw-rw----. 1 mysql mysql  51 Oct  5 19:49 relay-log.info
-rw-r-----. 1 mysql root  5589 Oct  5 19:49 serv08.host.com.err
-rw-rw----. 1 mysql mysql  5 Oct  5 19:45 serv08.host.com.pid
-rw-rw----. 1 mysql mysql  157 Oct  5 19:49 serv08-relay-bin.000001
-rw-rw----. 1 mysql mysql  253 Oct  5 19:49 serv08-relay-bin.000002
-rw-rw----. 1 mysql mysql  52 Oct  5 19:49 serv08-relay-bin.index
drwxr-xr-x. 2 mysql mysql  4096 Oct  5 18:12 test
[root@serv08 data]# cat relay-log.info
./serv08-relay-bin.000002
253
mysql-bin.000001
107
[root@serv08 data]# cat master.info
18
mysql-bin.000001
107
192.168.1.11
larry
larry
3306
第八步,测试
--serv08查看数据库
mysql> show databases;
+--------------------+
| Database  |
+--------------------+
| information_schema |
| mysql  |
| performance_schema |
| test  |
+--------------------+
4 rows in set (0.02 sec)--serv01创建数据库
mysql> create database larrydb;
Query OK, 1 row affected (0.00 sec)
--serv01查看数据库
mysql> show databases;
+--------------------+
| Database  |
+--------------------+
| information_schema |
| larrydb  |
| mysql  |
| performance_schema |
| test  |
+--------------------+
5 rows in set (0.01 sec)--serv08查看数据库,发现已经同步
mysql> show databases;
+--------------------+
| Database  |
+--------------------+
| information_schema |
| larrydb  |
| mysql  |
| performance_schema |
| test  |
+--------------------+
5 rows in set (0.00 sec)--serv01创建表 插入数据
mysql> use larrydb;
Database changed
mysql> create table test(id int(11));
Query OK, 0 rows affected (0.00 sec)mysql> insert into test values(1);
Query OK, 1 row affected (0.00 sec)--serv08查看数据是否同步成功,发现数据已经同步
mysql> use larrydb;
Database changed
mysql> show tables;
+-------------------+
| Tables_in_larrydb |
+-------------------+
| test  |
+-------------------+
1 row in set (0.00 sec)mysql> select * from test;
+------+
| id  |
+------+
|  1 |
+------+
1 row in set (0.00 sec)
第九步,查看进程状态
--serv01查看进程状态
mysql> show processlist;
+----+-------+--------------------+---------+-------------+------+-----------------------------------------------------------------------+------------------+
| Id | User  | Host  | db  | Command  | Time | State  | Info  |
+----+-------+--------------------+---------+-------------+------+-----------------------------------------------------------------------+------------------+
|  1 | root  | localhost  | larrydb | Query  |  0 | NULL  | show processlist |
|  2 | larry | 192.168.1.18:41393 | NULL  | Binlog Dump |  854 | Master has sent all binlog to slave; waiting for binlog to be updated | NULL  |
+----+-------+--------------------+---------+-------------+------+-----------------------------------------------------------------------+------------------+
2 rows in set (0.00 sec)--serv08查看进程状态
mysql> show processlist;
+----+-------------+-----------+---------+---------+------+-----------------------------------------------------------------------------+------------------+
| Id | User  | Host  | db  | Command | Time | State  | Info  |
+----+-------------+-----------+---------+---------+------+-----------------------------------------------------------------------------+------------------+
|  1 | root  | localhost | larrydb | Query  |  0 | NULL  | show processlist |
|  2 | system user |  | NULL  | Connect |  880 | Waiting for master to send event  | NULL  |
|  3 | system user |  | NULL  | Connect |  65 | Slave has read all relay log; waiting for the slave I/O thread to update it | NULL  |
+----+-------------+-----------+---------+---------+------+-----------------------------------------------------------------------------+------------------+
3 rows in set (0.00 sec)
MySQLAB双向复制
好了,MySQL AB单向复制介绍完毕。接下来想想,会有这样的应用场景。比如Master和Slave之间都要进行数据同步,那么单向复制是无法完成的,因为一个是Master,一个是Slave,只能单向操作,这就像网络里的半双工一样。既然一方可以向另一方同步数据,那么两方都做成Master 不就可以实现互相同步数据了。这就是接下来要介绍的MySQL AB双向复制。同样我们来看看MySQL AB双向复制的拓扑图。

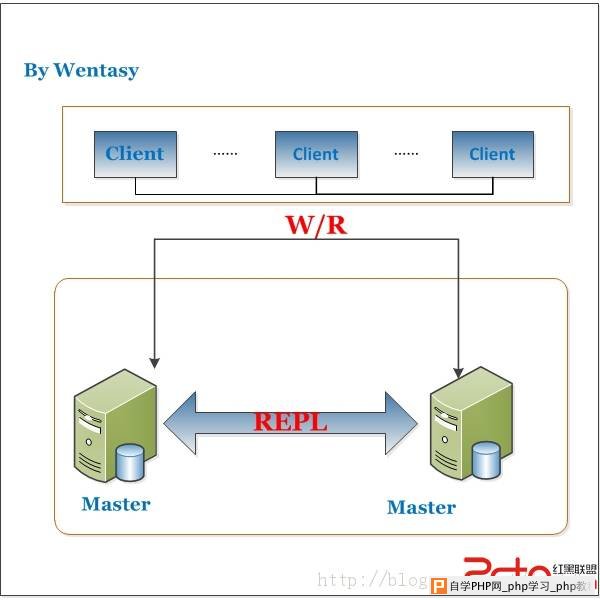

图二 MySQL AB双向复制
既然对拓扑图和原理有所了解,我们做一个实验,介绍如何使用MySQL AB双向复制,注意该实验是在MySQL单级复制的基础上做的。

实验环境介绍
主机   IP地址   主机名  备注
serv01:  192.168.1.11  serv01.host.com  master
serv08:  192.168.1.18  serv08.host.com  slave01
操作系统版本:rhel server 6.1
所需要的软件包:mysql-5.5.29-linux2.6-x86_64.tar.gz


第一步,serv08创建授权用户
mysql> grant replication client, replication slave on *.* to 'larry'@'192.168.1.%' identified by 'larry';
Query OK, 0 rows affected (0.01 sec)
第二步,serv08清空日志
mysql> show binary logs;
+------------------+-----------+
| Log_name  | File_size |
+------------------+-----------+
| mysql-bin.000001 |  286 |
+------------------+-----------+
1 row in set (0.00 sec)mysql> reset master;
Query OK, 0 rows affected (0.00 sec)mysql> show binary logs;
+------------------+-----------+
| Log_name  | File_size |
+------------------+-----------+
| mysql-bin.000001 |  107 |
+------------------+-----------+
1 row in set (0.00 sec)
第三步,serv01使用change master to命令修改从服务器设置
mysql> show slave status;
Empty set (0.00 sec)mysql> change master to
  -> master_host='192.168.1.18',
  -> master_user='larry',
  -> master_password='larry',
  -> master_port=3306,
  -> master_log_file='mysql-bin.000001',
  -> master_log_pos=107;
Query OK, 0 rows affected (0.01 sec)
第四步,serv01开启slave
mysql> start slave;
Query OK, 0 rows affected (0.01 sec)mysql> show slave status \G;
*************************** 1. row ***************************
  Slave_IO_State: Waiting for master to send event
  Master_Host: 192.168.1.18
  Master_User: larry
  Master_Port: 3306
  Connect_Retry: 60
  Master_Log_File: mysql-bin.000001
  Read_Master_Log_Pos: 107
  Relay_Log_File: serv01-relay-bin.000002
  Relay_Log_Pos: 253
  Relay_Master_Log_File: mysql-bin.000001
  Slave_IO_Running: Yes
  Slave_SQL_Running: Yes
  Replicate_Do_DB:
  Replicate_Ignore_DB:
  Replicate_Do_Table:
  Replicate_Ignore_Table:
  Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
  Last_Errno: 0
  Last_Error:
  Skip_Counter: 0
  Exec_Master_Log_Pos: 107
  Relay_Log_Space: 410
  Until_Condition: None
  Until_Log_File:
  Until_Log_Pos: 0
  Master_SSL_Allowed: No
  Master_SSL_CA_File:
  Master_SSL_CA_Path:
  Master_SSL_Cert:
  Master_SSL_Cipher:
  Master_SSL_Key:
  Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
  Last_IO_Errno: 0
  Last_IO_Error:
  Last_SQL_Errno: 0
  Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
  Master_Server_Id: 2
1 row in set (0.00 sec)ERROR:
No query specified
第五步,测试
--serv01查看数据
mysql> use larrydb;
Database changed
mysql> select * from test;
+------+
| id  |
+------+
|  1 |
+------+
1 row in set (0.00 sec)--serv08插入数据
mysql> use larrydb;
Database changed
mysql> select * from test;
+------+
| id  |
+------+
|  1 |
+------+
1 row in set (0.00 sec)mysql> insert into test values(2);
Query OK, 1 row affected (0.00 sec)--serv01查看数据,数据更新
mysql> select * from test;
+------+
| id  |
+------+
|  1 |
|  2 |
+------+
2 rows in set (0.00 sec)--serv01插入数据
mysql> insert into test values(3);
Query OK, 1 row affected (0.01 sec)--serv01查询数据
mysql> select * from test;
+------+
| id  |
+------+
|  1 |
|  2 |
|  3 |
+------+
3 rows in set (0.00 sec)--serv08查询数据,数据已更新
mysql> select * from test;
+------+
| id  |
+------+
|  1 |
|  2 |
|  3 |
+------+
3 rows in set (0.00 sec)
MySQL多级主从复制
好了,MySQL AB双向复制介绍完毕,我们又想了,不管是MySQL AB单向复制,还是MySQL 双向复制,都是双方的关系。MySQL AB单向复制可以是一对一,也就是一个Master对应一个Slave,或者一对多,也就是一个Master对应多个Slave;MySQL双向复制是一对一的关系。我们可不可以这样,实现多级关系,一个Master,接下来Slave,Slave下面还有Slave。这样做有什么好处呢?这样可以缓解数据库压力。这就是接下来要介绍的MySQL多级主从复制。多级也就是A---->B---->C,A作为主服务器,B是从服务器,B跟A建立主从关系;而且B是主服务器,C作为从服务器,B跟C建立主从关系。这样:A是主服务器,B既是主服务器,又是从服务器,C是从服务器。同样,我们来看看MySQL 多级主从复制的拓扑图:

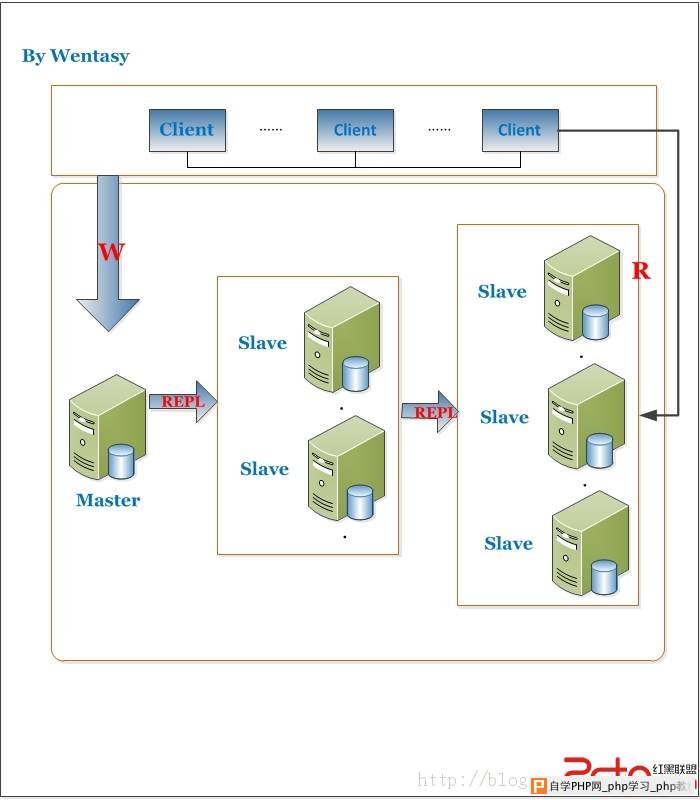

图三 MySQL 多级主从复制
该拓扑图实现 mysql 的 A 到B 的复制,再从 B 到 C 的复制。

既然对拓扑图和原理有所了解,我们做一个实验,介绍如何使用MySQL AB双向复制:

实验环境介绍

主机  IP地址  主机名  备注
serv01:  192.168.1.11  serv01.host.com  master
serv08:  192.168.1.18  serv08.host.com  slave01
serv09:  192.168.1.19 serv09.host.com  slave02
操作系统版本:rhel server 6.1
所需要的软件包:mysql-5.5.29-linux2.6-x86_64.tar.gz


第一步,断开双向关系。A只作为主服务器。
--停止slave
mysql> stop slave;
Query OK, 0 rows affected (0.00 sec)
--查看slave状态发现仍然有相关信息,我们要彻底删除,只需要把数据文件中相关文件删除即可。
mysql> show slave status \G;
*************************** 1. row ***************************
  Slave_IO_State:
  Master_Host: 192.168.1.18
  Master_User: larry
  Master_Port: 3306
  Connect_Retry: 60
  Master_Log_File: mysql-bin.000002
  Read_Master_Log_Pos: 587
  Relay_Log_File: serv01-relay-bin.000006
  Relay_Log_Pos: 733
  Relay_Master_Log_File: mysql-bin.000002
  Slave_IO_Running: No
  Slave_SQL_Running: No
  Replicate_Do_DB:
  Replicate_Ignore_DB:
  Replicate_Do_Table:
  Replicate_Ignore_Table:
  Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
  Last_Errno: 0
  Last_Error:
  Skip_Counter: 0
  Exec_Master_Log_Pos: 587
  Relay_Log_Space: 1036
  Until_Condition: None
  Until_Log_File:
  Until_Log_Pos: 0
  Master_SSL_Allowed: No
  Master_SSL_CA_File:
  Master_SSL_CA_Path:
  Master_SSL_Cert:
  Master_SSL_Cipher:
  Master_SSL_Key:
  Seconds_Behind_Master: NULL
Master_SSL_Verify_Server_Cert: No
  Last_IO_Errno: 0
  Last_IO_Error:
  Last_SQL_Errno: 0
  Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
  Master_Server_Id: 2
1 row in set (0.00 sec)ERROR:
No query specified--进入data目录,删除以下文件:master.info relay-log.info serv01-relay-bin.*
[root@serv01 ~]# cd /usr/local/mysql/data
[root@serv01 data]# ll
total 28736
-rw-rw----. 1 mysql mysql 18874368 Oct  5 22:38 ibdata1
-rw-rw----. 1 mysql mysql  5242880 Oct  5 22:38 ib_logfile0
-rw-rw----. 1 mysql mysql  5242880 Oct  5 18:16 ib_logfile1
drwx------. 2 mysql mysql  4096 Oct  5 22:36 larrydb
-rw-rw----. 1 mysql mysql  79 Oct  5 23:24 master.info
drwxr-xr-x. 2 mysql mysql  4096 Oct  5 18:15 mysql
-rw-rw----. 1 mysql mysql  690 Oct  5 22:34 mysql-bin.000001
-rw-rw----. 1 mysql mysql  970 Oct  5 22:38 mysql-bin.000002
-rw-rw----. 1 mysql mysql  38 Oct  5 22:34 mysql-bin.index
drwx------. 2 mysql mysql  4096 Oct  5 18:15 performance_schema
-rw-rw----. 1 mysql mysql  53 Oct  5 23:24 relay-log.info
-rw-r-----. 1 mysql root  5309 Oct  5 23:24 serv01.host.com.err
-rw-rw----. 1 mysql mysql  5 Oct  5 22:34 serv01.host.com.pid
-rw-rw----. 1 mysql mysql  303 Oct  5 22:35 serv01-relay-bin.000005
-rw-rw----. 1 mysql mysql  733 Oct  5 22:37 serv01-relay-bin.000006
-rw-rw----. 1 mysql mysql  52 Oct  5 22:35 serv01-relay-bin.index
-rw-r-----. 1 mysql mysql  2209 Oct  5 18:16 serv08.host.com.err
drwxr-xr-x. 2 mysql mysql  4096 Oct  5 18:12 test
[root@serv01 data]# rm -rf master.info relay-log.info serv01-relay-bin.*
第二步,serv01重启服务,再次查看slave信息,发现已经不存在
[root@serv01 data]# /etc/init.d/mysqld restart
Shutting down MySQL.... SUCCESS!
Starting MySQL.. SUCCESS![root@serv01 opt]# mysql
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 1
Server version: 5.5.29-log Source distribution
mysql> show slave status \G;
Empty set (0.00 sec)ERROR:
No query specified
第三步,serv08查看slave状态
mysql> show slave status \G;
*************************** 1. row ***************************
  Slave_IO_State: Waiting for master to send event
  Master_Host: 192.168.1.11
  Master_User: larry
  Master_Port: 3306
  Connect_Retry: 60
  Master_Log_File: mysql-bin.000003
  Read_Master_Log_Pos: 107
  Relay_Log_File: serv08-relay-bin.000007
  Relay_Log_Pos: 253
  Relay_Master_Log_File: mysql-bin.000003
  Slave_IO_Running: Yes
  Slave_SQL_Running: Yes
  Replicate_Do_DB:
  Replicate_Ignore_DB:
  Replicate_Do_Table:
  Replicate_Ignore_Table:
  Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
  Last_Errno: 0
  Last_Error:
  Skip_Counter: 0
  Exec_Master_Log_Pos: 107
  Relay_Log_Space: 556
  Until_Condition: None
  Until_Log_File:
  Until_Log_Pos: 0
  Master_SSL_Allowed: No
  Master_SSL_CA_File:
  Master_SSL_CA_Path:
  Master_SSL_Cert:
  Master_SSL_Cipher:
  Master_SSL_Key:
  Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
  Last_IO_Errno: 0
  Last_IO_Error:
  Last_SQL_Errno: 0
  Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
  Master_Server_Id: 1
1 row in set (0.00 sec)ERROR:
No query specified
--如果查看slave状态出错,我们重启服务
[root@serv08 ~]# /etc/init.d/mysqld restart
Shutting down MySQL.. SUCCESS!
Starting MySQL.. SUCCESS!
第四步,serv09搭建相同版本的MySQL,修改server-id,启动服务
[root@serv09 ~]# vim /etc/my.cnf
[root@serv09 ~]# cat /etc/my.cnf | grep server-id
server-id = 3
[root@serv09 ~]# /etc/init.d/mysqld start
Starting MySQL.. SUCCESS!
第五步,serv01插入数据
mysql> use larrydb;
Database changed
mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
+----+---------+
5 rows in set (0.00 sec)mysql> insert into t2(name) values('larry07');
Query OK, 1 row affected (0.01 sec)
第六步,serv08查看serv01插入的数据是否记录到日志文件。可以发现,和serv01建立关系的延时日志文件中有相关记录,而主日志文件mysql-bin.000003中没有相关记录
[root@serv08 data]# mysqlbinlog serv08-relay-bin.000009 | grep insert -i --color
/*!40019 SET @@session.max_insert_delayed_threads=0*/;
SET INSERT_ID=9/*!*/;
insert into t2(name) values('larry07')
[root@serv08 data]# mysqlbinlog mysql-bin.000003 | grep larry07
第七步,我们要把serv08的数据同步到serv09,因为serv08中的mysql-bin.000003文件没有相关记录,所以不能通过日志文件同步,我们只有先serv08导出数据,然后serv09导入数据,再把log_slave_updates打开
--导出数据
[root@serv08 data]# mysqldump --help --verbose | grep database[root@serv08 data]# mysqldump --databases larrydb > larrydb.sql
--拷贝数据文件
[root@serv08 data]# scp larrydb.sql 192.168.1.19:/opt
root@192.168.1.19's password:
larrydb.sql  100% 2612  2.6KB/s  00:00 --serv09导入数据
mysql> source /opt/larrydb.sql;
Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 1 row affected (0.01 sec)Database changed
Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 6 rows affected (0.01 sec)
Records: 6  Duplicates: 0  Warnings: 0Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.02 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 3 rows affected (0.00 sec)
Records: 3  Duplicates: 0  Warnings: 0Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)Query OK, 0 rows affected (0.00 sec)mysql> use larrydb;
Database changed
mysql> show tables;
+-------------------+
| Tables_in_larrydb |
+-------------------+
| t2  |
| test  |
+-------------------+
2 rows in set (0.01 sec)mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
|  9 | larry07 |
+----+---------+
6 rows in set (0.01 sec)--serv08修改配置文件,打开log_slave_updates,重启MySQL服务
mysql> show variables like '%update%';
+-----------------------------------------+-------+
| Variable_name  | Value |
+-----------------------------------------+-------+
| binlog_direct_non_transactional_updates | OFF  |
| log_slave_updates  | OFF  |
| low_priority_updates  | OFF  |
| sql_low_priority_updates  | OFF  |
| sql_safe_updates  | OFF  |
+-----------------------------------------+-------+
5 rows in set (0.00 sec)[root@serv08 data]# vim /etc/my.cnf
[root@serv08 data]# cat /etc/my.cnf | grep log_slave_updates
log_slave_updates=1
[root@serv08 data]# /etc/init.d/mysqld restart
Shutting down MySQL.... SUCCESS!
Starting MySQL.. SUCCESS! --serv08
mysql> show variables like "%update%";
+-----------------------------------------+-------+
| Variable_name  | Value |
+-----------------------------------------+-------+
| binlog_direct_non_transactional_updates | OFF  |
| log_slave_updates  | ON  |
| low_priority_updates  | OFF  |
| sql_low_priority_updates  | OFF  |
| sql_safe_updates  | OFF  |
+-----------------------------------------+-------+
5 rows in set (0.00 sec)
第八步,serv01插入测试数据,我们看到打开这个参数后mysql-bin.000004和serv08-relay-bin.000011都有相关的插入数据的记录
mysql> insert into t2(name) values('larry08');
Query OK, 1 row affected (0.00 sec)mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
|  9 | larry07 |
| 11 | larry08 |
+----+---------+
7 rows in set (0.00 sec)[root@serv08 data]# mysqlbinlog mysql-bin.000004 | grep larry
use `larrydb`/*!*/;
insert into t2(name) values('larry08')
[root@serv08 data]# mysqlbinlog serv08-relay-bin.000011 | grep larry
use `larrydb`/*!*/;
insert into t2(name) values('larry08')
第九步,serv08创建授权用户
mysql> select user,password,host from mysql.user where user='larry';
ERROR 2006 (HY000): MySQL server has gone away
No connection. Trying to reconnect...
Connection id:  3
Current database: larrydb+-------+-------------------------------------------+-------------+
| user  | password  | host  |
+-------+-------------------------------------------+-------------+
| larry | *0CDC8D34246E22649D647DB04E7CCCACAB4368B6 | 192.168.1.% |
+-------+-------------------------------------------+-------------+
1 row in set (0.00 sec)mysql> show binary logs;
+------------------+-----------+
| Log_name  | File_size |
+------------------+-----------+
| mysql-bin.000001 |  1046 |
| mysql-bin.000002 |  606 |
| mysql-bin.000003 |  126 |
| mysql-bin.000004 |  335 |
+------------------+-----------+
4 rows in set (0.00 sec)
第十步,serv09通过change master to修改slave配置,然后启动slave,查看slave状态,查看数据,发现已经从serv08更新过来
mysql> change master to
  -> master_host='192.168.1.18',
  -> master_user='larry',
  -> master_password='larry',
  -> master_port=3306,
  -> master_log_file='mysql-bin.000003',
  -> master_log_pos=126;
Query OK, 0 rows affected (0.03 sec)mysql> show slave status \G;
*************************** 1. row ***************************
  Slave_IO_State:
  Master_Host: 192.168.1.18
  Master_User: larry
  Master_Port: 3306
  Connect_Retry: 60
  Master_Log_File: mysql-bin.000003
  Read_Master_Log_Pos: 126
  Relay_Log_File: serv09-relay-bin.000001
  Relay_Log_Pos: 4
  Relay_Master_Log_File: mysql-bin.000003
  Slave_IO_Running: No
  Slave_SQL_Running: No
  Replicate_Do_DB:
  Replicate_Ignore_DB:
  Replicate_Do_Table:
  Replicate_Ignore_Table:
  Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
  Last_Errno: 0
  Last_Error:
  Skip_Counter: 0
  Exec_Master_Log_Pos: 126
  Relay_Log_Space: 107
  Until_Condition: None
  Until_Log_File:
  Until_Log_Pos: 0
  Master_SSL_Allowed: No
  Master_SSL_CA_File:
  Master_SSL_CA_Path:
  Master_SSL_Cert:
  Master_SSL_Cipher:
  Master_SSL_Key:
  Seconds_Behind_Master: NULL
Master_SSL_Verify_Server_Cert: No
  Last_IO_Errno: 0
  Last_IO_Error:
  Last_SQL_Errno: 0
  Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
  Master_Server_Id: 0
1 row in set (0.00 sec)ERROR:
No query specifiedmysql> start slave;
Query OK, 0 rows affected (0.01 sec)mysql> show slave status \G;
*************************** 1. row ***************************
  Slave_IO_State: Waiting for master to send event
  Master_Host: 192.168.1.18
  Master_User: larry
  Master_Port: 3306
  Connect_Retry: 60
  Master_Log_File: mysql-bin.000004
  Read_Master_Log_Pos: 335
  Relay_Log_File: serv09-relay-bin.000003
  Relay_Log_Pos: 481
  Relay_Master_Log_File: mysql-bin.000004
  Slave_IO_Running: Yes
  Slave_SQL_Running: Yes
  Replicate_Do_DB:
  Replicate_Ignore_DB:
  Replicate_Do_Table:
  Replicate_Ignore_Table:
  Replicate_Wild_Do_Table:
  Replicate_Wild_Ignore_Table:
  Last_Errno: 0
  Last_Error:
  Skip_Counter: 0
  Exec_Master_Log_Pos: 335
  Relay_Log_Space: 784
  Until_Condition: None
  Until_Log_File:
  Until_Log_Pos: 0
  Master_SSL_Allowed: No
  Master_SSL_CA_File:
  Master_SSL_CA_Path:
  Master_SSL_Cert:
  Master_SSL_Cipher:
  Master_SSL_Key:
  Seconds_Behind_Master: 0
Master_SSL_Verify_Server_Cert: No
  Last_IO_Errno: 0
  Last_IO_Error:
  Last_SQL_Errno: 0
  Last_SQL_Error:
  Replicate_Ignore_Server_Ids:
  Master_Server_Id: 2
1 row in set (0.00 sec)ERROR:
No query specifiedmysql> select * from larrydb.t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
|  9 | larry07 |
| 11 | larry08 |
+----+---------+
7 rows in set (0.00 sec)
第十一步,serv01插入数据,可以看到serv08 serv09都已经同步过去了
--serv01
mysql> insert into t2(name) values('larry09');
Query OK, 1 row affected (0.00 sec)
mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
|  9 | larry07 |
| 11 | larry08 |
| 13 | larry09 |
+----+---------+
8 rows in set (0.00 sec)--serv08
mysql> select * from larrydb.t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
|  9 | larry07 |
| 11 | larry08 |
| 13 | larry09 |
+----+---------+
8 rows in set (0.00 sec)--serv09
mysql> select * from larrydb.t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
|  9 | larry07 |
| 11 | larry08 |
| 13 | larry09 |
+----+---------+
8 rows in set (0.00 sec)
解决AB双向复制主键冲突
在进行MySQLAB双向复制时,如果一张表的主键是自增的,会出现问题。主服务器和从服务器在插入数据时会发生主键冲突,比如A服务器插入一条数据,id为5,B服务器同步过去,但是B服务器插入数据ID也可能是5,就这会引起主键冲突,导致数据不能插入。因此,我们需要解决这个问题。解决办法是主键间隔设置,通过设置主键步长,比如A(13 5 7),B(2 4 6 8),有几台机器步长就为几。接下来的实验是在MySQLAB双向复制的基础上做的。

第一步,serv08创建测试表,插入数据,查看数据
mysql> create table t2(id int auto_increment primary key,name varchar(30));
Query OK, 0 rows affected (0.00 sec)mysql> desc t2;
+-------+-------------+------+-----+---------+----------------+
| Field | Type  | Null | Key | Default | Extra  |
+-------+-------------+------+-----+---------+----------------+
| id  | int(11)  | NO  | PRI | NULL  | auto_increment |
| name  | varchar(30) | YES  |  | NULL  |  |
+-------+-------------+------+-----+---------+----------------+
2 rows in set (0.00 sec)mysql> insert into t2(name) values('larry01');
Query OK, 1 row affected (0.00 sec)mysql> insert into t2(name) values('larry02');
Query OK, 1 row affected (0.01 sec)mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
+----+---------+
2 rows in set (0.00 sec)
第二步,serv01查看数据
mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
+----+---------+
2 rows in set (0.00 sec)mysql> drop table t2;
Query OK, 0 rows affected (0.01 sec)
第二步,serv01和serv08修改配置文件,并重启服务
[root@serv01 opt]# vim /etc/my.cnf
[root@serv01 opt]# cat /etc/my.cnf | grep auto_incre
auto_increment_increment=2
auto_increment_offset=1
[root@serv01 opt]# /etc/init.d/mysqld restart
Shutting down MySQL.. SUCCESS!
Starting MySQL.. SUCCESS! [root@serv08 data]# vim /etc/my.cnf
[root@serv08 data]# cat /etc/my.cnf | grep auto_incre
auto_increment_increment=2
auto_increment_offset=2[root@serv08 data]# /etc/init.d/mysqld restart
Shutting down MySQL. SUCCESS!
Starting MySQL.. SUCCESS!
第三步,serv01再次模拟数据
mysql> use larrydb;
Database changed
mysql> show tables;
+-------------------+
| Tables_in_larrydb |
+-------------------+
| test  |
+-------------------+
1 row in set (0.00 sec)
mysql> create table t2(id int(11) primary key auto_increment, name varchar(30));
Query OK, 0 rows affected (0.02 sec)mysql> insert into t2(name) values('larry01');
Query OK, 1 row affected (0.01 sec)mysql> insert into t2(name) values('larry02');
Query OK, 1 row affected (0.00 sec)mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
+----+---------+
2 rows in set (0.00 sec)--serv08
mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
+----+---------+
2 rows in set (0.00 sec)mysql> insert into t2(name) values('larry03');
Query OK, 1 row affected (0.00 sec)mysql> insert into t2(name) values('larry04');
Query OK, 1 row affected (0.00 sec)mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
+----+---------+
4 rows in set (0.00 sec)--serv01
mysql> insert into t2(name) values('larry05');
Query OK, 1 row affected (0.00 sec)mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
+----+---------+
5 rows in set (0.00 sec)--serv08
mysql> select * from t2;
+----+---------+
| id | name  |
+----+---------+
|  1 | larry01 |
|  3 | larry02 |
|  4 | larry03 |
|  6 | larry04 |
|  7 | larry05 |
+----+---------+
5 rows in set (0.00 sec)

自学PHP网专注网站建设学习,PHP程序学习,平面设计学习,以及操作系统学习

京ICP备14009008号-1@版权所有www.zixuephp.com

网站声明:本站所有视频,教程都由网友上传,站长收集和分享给大家学习使用,如由牵扯版权问题请联系站长邮箱904561283@qq.com

添加评论
